Introduction
A pin that looks right can still be wrong. Diameter might match, but the dipper gap, pin centers, or locking style might not. That's how contractors end up with a bucket that won't seat, or worse, one that shifts under load.
Pin sizes vary wildly even within the same machine class. A 72-inch tilt bucket might call for 80mm pins spaced 17½ inches center-to-center, while a similar-looking screening bucket needs 90mm pins spaced 21 inches apart. Small differences, big consequences.
This guide walks through how to use an excavator bucket pin size chart correctly, measure an existing attachment step by step, and spot when a chart isn't enough. In those cases, an OEM manual or a fitment professional should confirm the numbers.
Key Takeaways
- Record six data points, not one: pin diameter, dipper gap, pin centers, effective length, locking style, grease-hole position
- Treat charts as a starting reference; verify against model, generation, and coupler type
- Measure clean, unworn pin surfaces — worn bushings and oval holes throw off your numbers
- Get a professional fitment check before forcing a pin or running incomplete retaining hardware
What You Need to Check on an Excavator Bucket
Manufacturers don't use consistent terminology. What one supplier calls "pin spread," another labels "face spread" or "pin centers," and they're not always measuring the same thing. Getting the right tools and knowing exactly where to place them matters as much as the measurement itself.
Tools Required
Gather these before you start:
- Steel rule or tape measure for dipper gap and pin-center spacing
- Vernier or digital caliper for pin diameter and smaller features
- Depth gauge for effective length between locking surfaces
- Flashlight to check grease holes, grooves, and hidden wear
- Camera to document both sides of the connection
- Measurement record sheet to log every reading against its location
A tape measure gives you a fast ballpark for spacing. It's not precise enough for pin diameter, though. A close-tolerance replacement pin needs caliper accuracy, typically within a few thousandths of an inch.
Sketch a quick diagram labeling diameter, dipper gap, pin centers, total length, effective length, and locking points before you touch the machine. It keeps your notes organized once you're covered in grease.

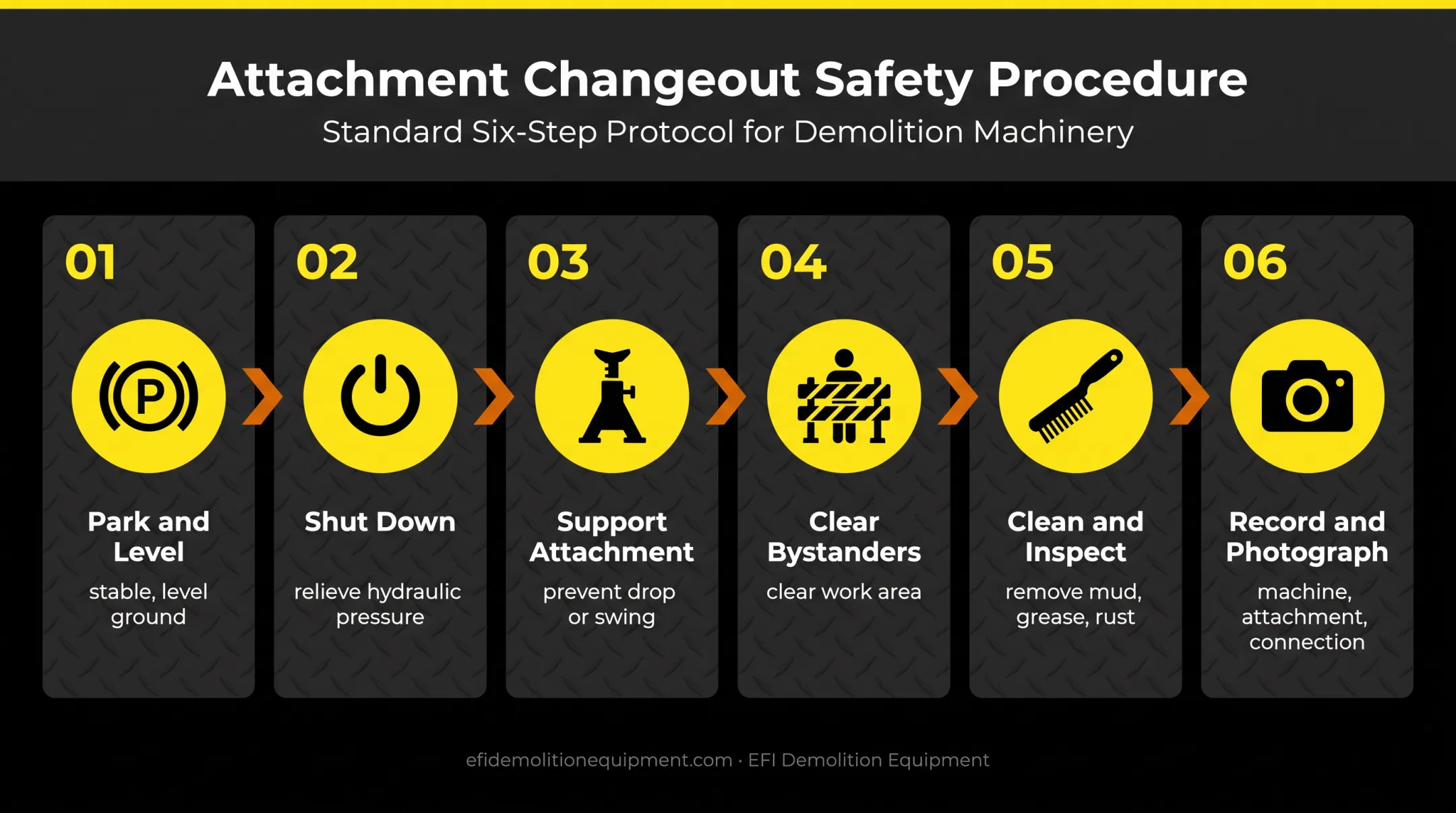

Preconditions and Setup
Before measuring anything, set up the work area properly:
- Park the excavator and attachment on stable, level ground so nothing can shift mid-measure
- Shut off the engine and relieve hydraulic pressure before you approach the linkage
- Support or crib the attachment so it cannot drop or swing
- Clear the work area of bystanders
OSHA's equipment standard requires that suspended equipment or attachments be substantially blocked or cribbed before anyone works underneath or between them, with controls in neutral and the engine stopped. This isn't optional prep. It's the difference between a routine measurement and a serious injury.
Once the machine is secured, clean mud, packed debris, grease, and rust from the pin, bosses, and retaining areas. Note any scoring, stepping, oval wear, cracks, or prior repairs.
Record the excavator's make, model, and serial information where available, along with the attachment type and whether it connects directly or through a quick hitch. Photograph both sides of the connection before you disturb anything.

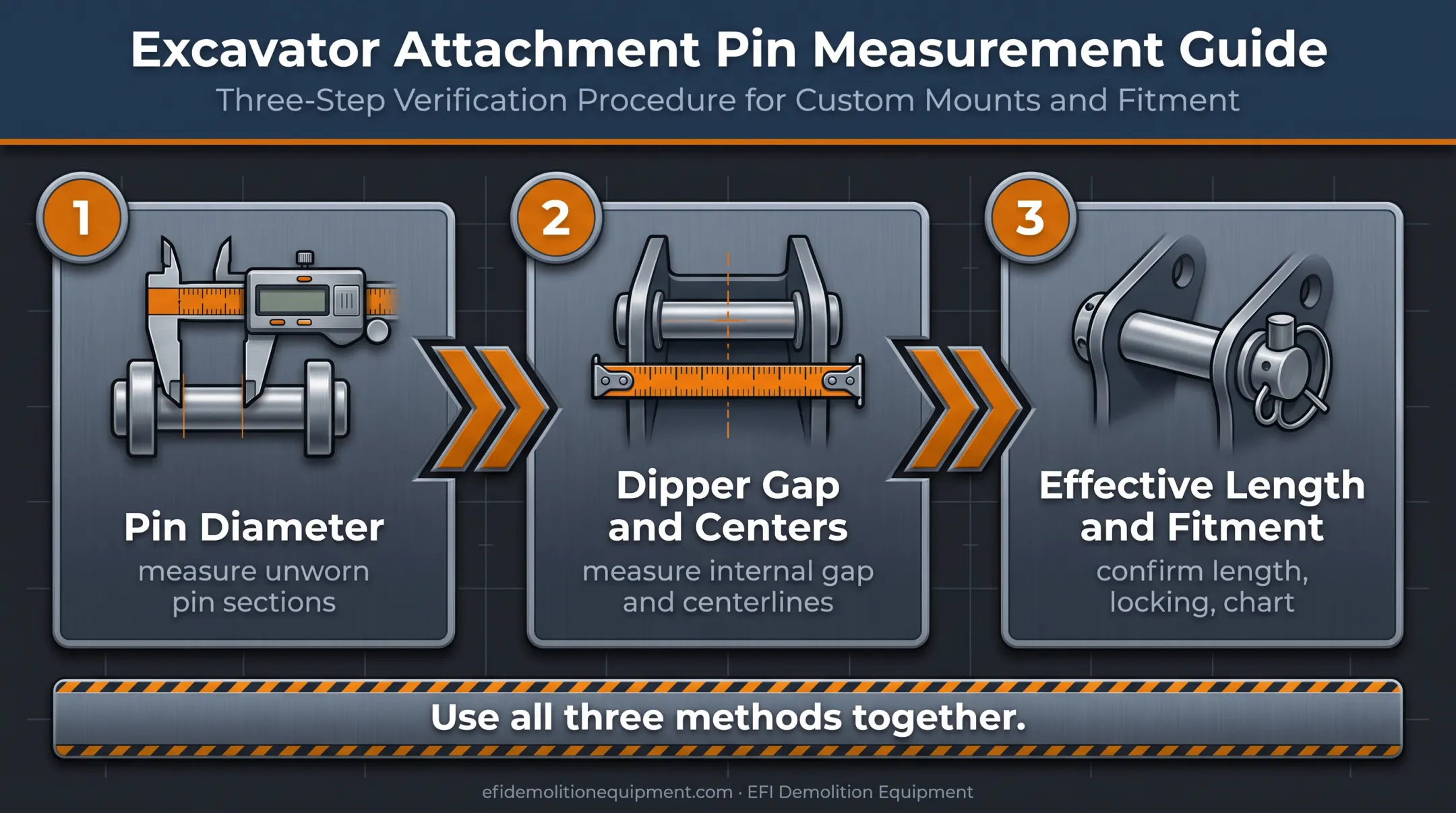

Methods to Check Excavator Bucket Pin Dimensions
No single measurement confirms fit. A pin can be the right diameter and still be the wrong length, or fit the correct centers but have the wrong locking style. Use all three methods together, especially on a worn or unfamiliar attachment.
Method 1: Measure Pin Diameter
Measure the widest, least-worn section of the pin, perpendicular to its length. If the pin itself isn't available, measure the hole instead. Note that hole wear tends to make it read larger than the original pin size.
Steps:
- Clean the pin and identify at least two unworn measurement points
- Take readings in multiple orientations and locations to catch taper or ovality
- Record the diameter along with the pin's condition and whether the number is original or worn
This is the fastest, most precise starting point. It's also incomplete on its own. A diameter reading can't confirm fit if the bucket bosses, bushings, or quick-hitch components are worn out of spec.
Method 2: Measure Dipper Gap and Pin Centers
Dipper gap is the smallest internal distance between the bucket ears where the excavator linkage sits. Pin centers are the distance between the two bucket pins' centerlines. Measure between the correct machined or boss surfaces, not from outer edges that may include wear buildup or added reinforcement.
For example, one screening bucket in EFI's inventory specifies 90mm pins with 21 inches on center and roughly 15¾ to 17½ inches between ears. Another tilt bucket lists 80mm pins at 17½ inches center-to-center with a narrower 12 3/16 to 13 5/8-inch between-ears range. Two buckets, similar appearance, completely different fitment.
Steps:
- Measure the narrowest internal dipper gap and note exactly where you took the reading
- Measure pin-center distance using consistent reference edges. Don't eyeball it
- Repeat both measurements and compare against the attachment drawing or supplier fitment data
These numbers tell you whether the linkage can physically enter and articulate inside the bucket. They get harder to trust when ears are bent, bosses are worn, or the attachment has been modified from stock.
Method 3: Confirm Effective Length, Locking Features, and Chart Fitment
Total pin length and effective length aren't the same thing. Effective length is the usable distance between flanges, grooves, or retaining plates: the part that actually matters for fit.
Caterpillar's own pin specifications list overall length and effective length as separate fields, alongside outside diameter and grease passage details. Treat those as two different measurements.
Steps:
- Measure total length end to end, then measure effective length between the actual locking surfaces
- Record the locking method: greaseable, non-greased, flanged, bolted, snap-ring retained, or quick-hitch style
- Compare every recorded dimension against a model-specific chart, and label each chart entry as OEM-confirmed, supplier-confirmed, or approximate
This step catches the mistake of ordering a pin with the right diameter but the wrong working length or retention style. Even here, chart data needs verification. The same machine family can span multiple generations, linkage designs, and attachment configurations with different specs for each.
How to Interpret the Results
Treat your measurements as a complete fitment profile, not one isolated number. Misreading the results can lead to attachment movement, accelerated wear, pin failure, hydraulic linkage damage, or an unsafe separation on the job.
Normal/Acceptable Results
A solid result is a consistent set of measurements matching the machine and attachment documentation. You should see no significant ovality, cracks, bent ears, damaged retaining surfaces, or unexplained play.
Match the final pin to all of these factors, not just operating weight or a general size range:
- Diameter and effective length
- Dipper gap and pin centers
- Locking arrangement and coupler requirements
Before ordering, record:
- All measurements and the exact points where you took them
- Machine make, model, and serial data
- Photos of the connection
- The source used to verify dimensions (parts manual, supplier chart, direct confirmation)
Minor Issues
Small variances often come from dirt, paint buildup, burrs, caliper technique, or light surface wear. Clean the area and remeasure rather than rounding to the nearest common size out of convenience.
Moderate wear in pins, bushings, or bosses may call for a repair assessment or a replacement kit. Check manufacturer tolerances for your specific model rather than assuming a universal clearance applies.
If your measurement doesn't match the parts manual, the attachment has been modified, or you can't confidently identify the centerline or locking surface, get a supplier review before ordering.
Out-of-Spec Results
Some findings mean the attachment shouldn't go back into service yet:
- Visibly bent or cracked ears
- Oval boss holes
- Severe pin grooves or worn snap-ring grooves
- Missing retainers
- Excessive play or measurements that conflict across repeated checks
Any of these signs mean the attachment needs inspection and repair by a qualified technician before it's used again. When standard measurements simply don't match anything in a published chart, get a second set of eyes on it.
EFI Demolition Equipment works with contractors on this kind of mismatch. The team offers fitment guidance and custom-fabricated mounts or pins when off-the-shelf dimensions won't line up. Any fit still needs verification against your specific machine before it's built.
Common Errors and Safety and Best Practices
Common Errors, Safety, and Best Practices
Most fitment problems trace back to a handful of repeat mistakes:
- Measuring a worn section of the pin instead of an unworn one
- Confusing total length with effective length
- Measuring outside ear width instead of the internal dipper gap
- Estimating pin centers by eye rather than measuring them directly
- Relying on machine tonnage alone to pick a pin size
- Trusting an unverified chart entry without cross-checking the model
- Overlooking a quick hitch's separate pin geometry
- Skipping photos of unusual attachment modifications
Those mistakes produce bad fits. Coupler and locking-pin oversights create a separate hazard: a bucket that can come off under load.

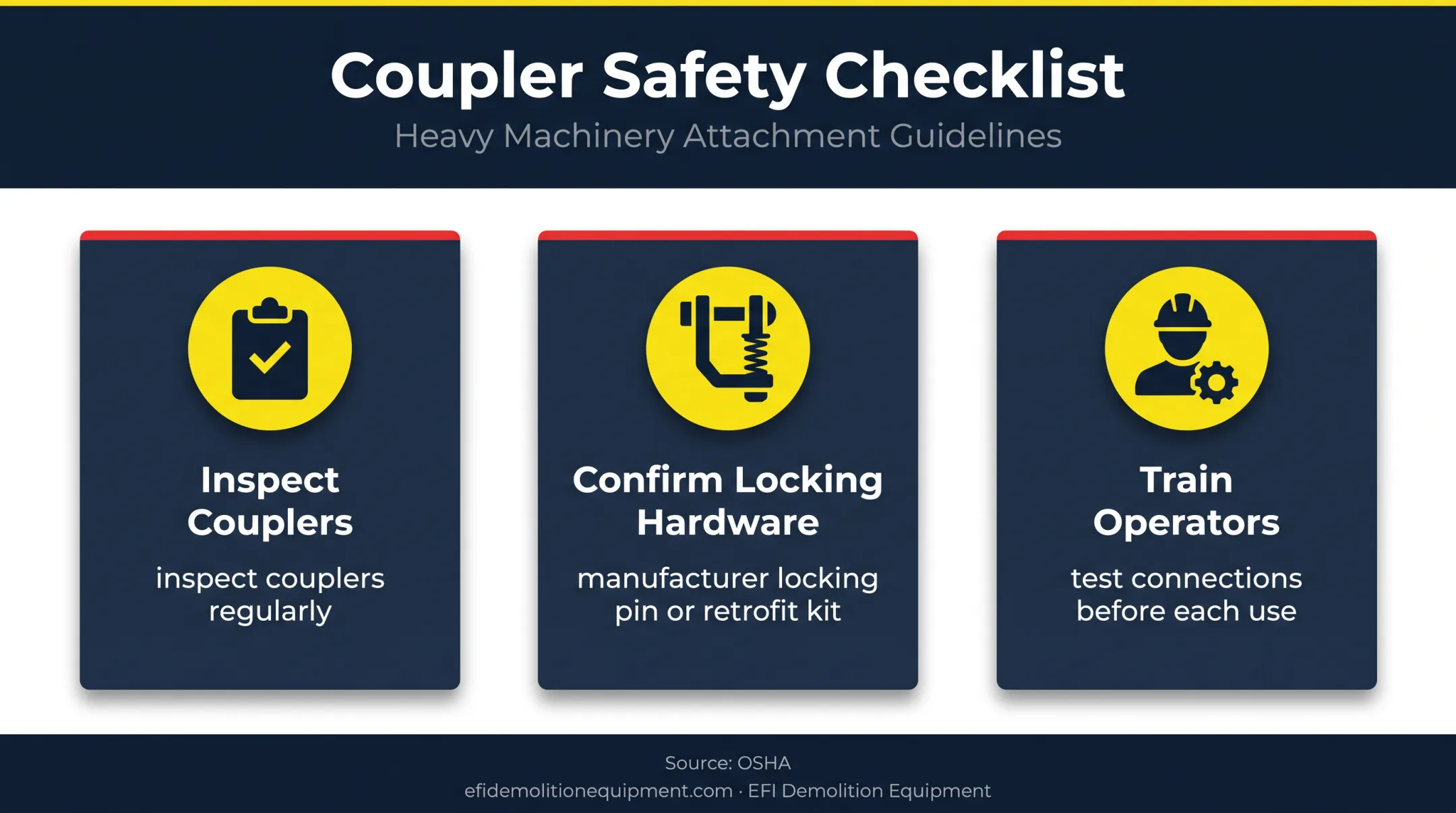

OSHA has documented real incidents in this area. In one case cited in its quick-coupler hazard bulletin, a bucket detached because a manual locking pin had never been installed.
OSHA's guidance calls for inspecting couplers regularly, confirming whether the manufacturer supplies a locking pin or retrofit kit, and training operators to test connections before each use.
Practical safety steps:
- Lock out and isolate the excavator before working on any connection
- Support the attachment mechanically — never rely on hydraulics alone
- Keep hands clear of pinch points
- Wear eye and hand protection
- Never stand beneath a suspended bucket
- Don't hammer out a pin that's under load or hydraulically supported
If a pin is seized, under load, cracked, heavily worn, or simply impossible to measure accurately, stop and bring in a professional. That's not a step to skip to save time.
Conclusion
A dependable pin size check covers six measurements, each verified against machine-specific documentation:
- Pin diameter
- Dipper gap
- Pin centers
- Effective length
- Locking details
- Attachment type
Getting every measurement right—not a close match—prevents ordering errors, downtime, premature wear, and unsafe connections.
When standard chart data doesn't resolve the match, EFI Demolition Equipment can review your measurements and fabricate custom mounts or pins to fit your exact machine. Reach the team at +1 (315) 440-2762 or Endbar@mail.com for a fitment check before you place an order.
Frequently Asked Questions
What are the common sizes of excavator bucket pins?
Pin diameters vary widely by excavator size, model, linkage, and coupler. Common ranges span roughly 80–100 mm (about 3-1/8" to 4"), but there's no single universal figure. Always verify the actual dimensions for your specific machine rather than relying on a generic range.
How do I measure excavator bucket pins?
Measure pin diameter, dipper gap, pin centers, and effective length, then document the locking style and grease-hole position. Always measure clean, unworn surfaces, and take multiple readings to catch taper or wear.
What size pin does a John Deere 350 excavator bucket have?
The exact size depends on the specific 350 configuration and attachment in use. Confirm it using Deere's parts manual, serial information, and physical measurements rather than a generic chart figure.
What size bucket pin does a Kubota excavator use?
Pin dimensions differ across Kubota models and generations, so there's no single answer that applies to every machine. Verify diameter, gap, centers, and retention style for your specific model and bucket combination.
What is the pin size of a CAT 320 excavator bucket?
CAT 320 pin dimensions can vary by model generation, linkage position, and attachment type, so bucket-family catalog figures and coupler pickup specs aren't interchangeable. Confirm with verified Caterpillar documentation or supplier data alongside your own physical measurements.
What is a quick hitch on an excavator?
A quick hitch, or quick coupler, is an interface that lets you connect and release attachments faster than pinning a bucket directly to the machine. Its pin geometry, locking mechanism, and safety requirements are specific to that coupler model and must be checked separately from the bucket's own pin specs.
