Picking the wrong size costs money. An undersized excavator lacks the reach, stability, or hydraulic flow to run a breaker or auger. An oversized machine won't clear a 36-inch gate, overloads your trailer, or tears up a finished lawn.
This guide breaks down mini and compact excavator size classes, the specs that actually matter, and a practical process for matching a machine to your project instead of just grabbing the biggest one on the lot.
Key Takeaways
- Small excavators are grouped by operating weight, but exact class boundaries vary by manufacturer, so always check current spec sheets.
- Ultra-compact models prioritize narrow access; larger compact machines add digging depth, reach, and attachment capacity.
- Width, tail swing, lift charts, and hydraulic flow matter as much as the size label.
- Size the machine to your toughest task and site constraints, not the average job.
What Are Small Excavator Sizes?
Small excavators are tracked or wheeled machines built for digging, trenching, grading, material handling, demolition, and utility work. They fit jobs where access or ground pressure rules out a full-size excavator.
"Mini excavator," "compact excavator," and "small excavator" get used interchangeably across the industry, but there's no single agreed-upon definition. Caterpillar markets its 308 CR as a mini excavator even though it tips the scales at nearly 18,500 lb. Bobcat groups its entire small-excavator lineup under "compact excavators." Neither label tells you much on its own.
Operating weight is the number most contractors compare first. A published weight typically includes:
- A standard operator (often modeled at around 165 lb)
- A full fuel tank
- Standard tracks and counterweight
It usually excludes the bucket. Options like a cab, long stick, or steel tracks can add hundreds of pounds. Two machines listed at the same weight class can differ by 1,000 lb or more once configured. Always compare the exact model and configuration, not just the class name.

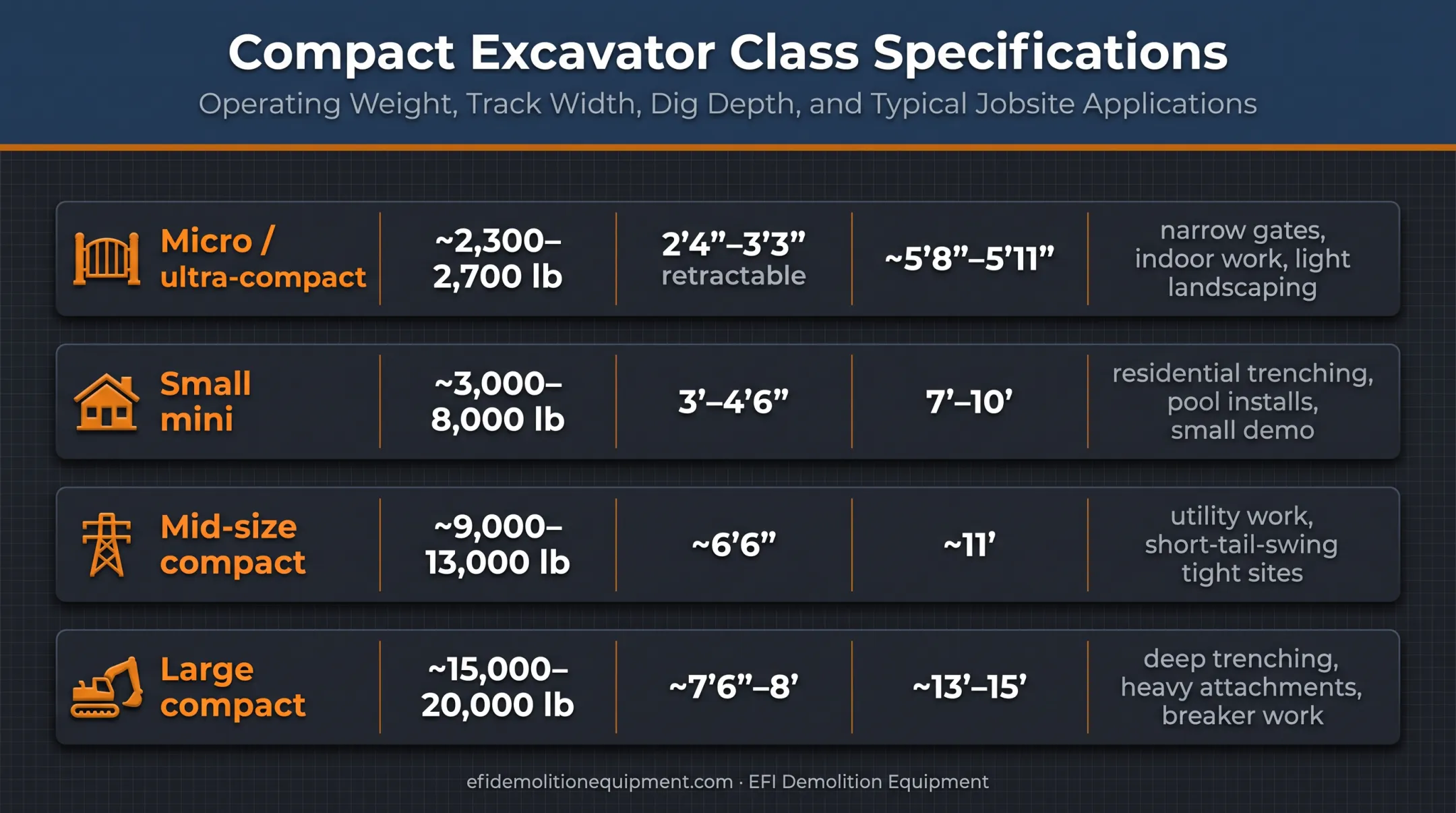

Small Excavator Size Classes
Size classes aren't standardized across the industry, but published spec sheets from Kubota, Takeuchi, and Caterpillar give a reasonable picture of where each class typically lands:
| Class | Typical operating weight | Typical width | Approx. max digging depth | Common applications |
|---|---|---|---|---|
| Micro / ultra-compact | ~2,300–2,700 lb | 2'4"–3'3" (retractable) | ~5'8"–5'11" | Narrow gates, indoor work, light landscaping |
| Small mini | ~3,000–8,000 lb | 3'–4'6" | 7'–10' | Residential trenching, pool installs, small demo |
| Mid-size compact | ~9,000–13,000 lb | ~6'6" | ~11' | Utility work, short-tail-swing tight sites |
| Large compact | ~15,000–20,000 lb | ~7'6"–8' | ~13'–15' | Deep trenching, heavy attachments, breaker work |
Treat these as reference ranges, not guarantees. Verify actual dimensions on the manufacturer's current sheet before you commit.
Micro and Ultra-Compact Excavators
These are the smallest machines on the market, chosen when access matters more than power. They excel at narrow gates, indoor demolition, backyard landscaping, shallow trenching, and jobs where surface protection is a priority.
Strengths:
- Low ground impact and reduced surface damage
- Tight tail swing for working near walls or fences
- Easy to transport on a standard trailer
Trade-offs: lower lift capacity, less digging force, shorter reach, and fewer compatible attachments.
EFI Demolition Equipment's Mini X Mini Excavator fits this bracket at $7,000 without a cab or $8,000 with one. It's quick-coupler compatible for basic bucket and grading work in confined spaces.
Small Mini Excavators
Step up from ultra-compact, and you gain stability, digging performance, and attachment versatility while still fitting most residential sites. This class handles utility trenching, pool installation, landscaping, and small demolition jobs.
When access is still tight, check:
- Track width in retracted vs. expanded position
- Whether tracks retract manually or hydraulically
- Tail swing (zero, minimal, or conventional)
- Transport weight against your trailer's rated payload
Mid-Size and Large Compact Excavators
These machines make sense when a project needs more digging depth, reach, breakout force, or hydraulic capacity to run breakers, augers, compactors, or grapples. They trade convenience for capability.
Watch for:
- Higher ground pressure on soft or finished surfaces
- More swing radius needed to rotate safely
- Heavier transport requirements (bigger trailer, bigger tow vehicle)
- Reduced or no access to indoor or residential sites

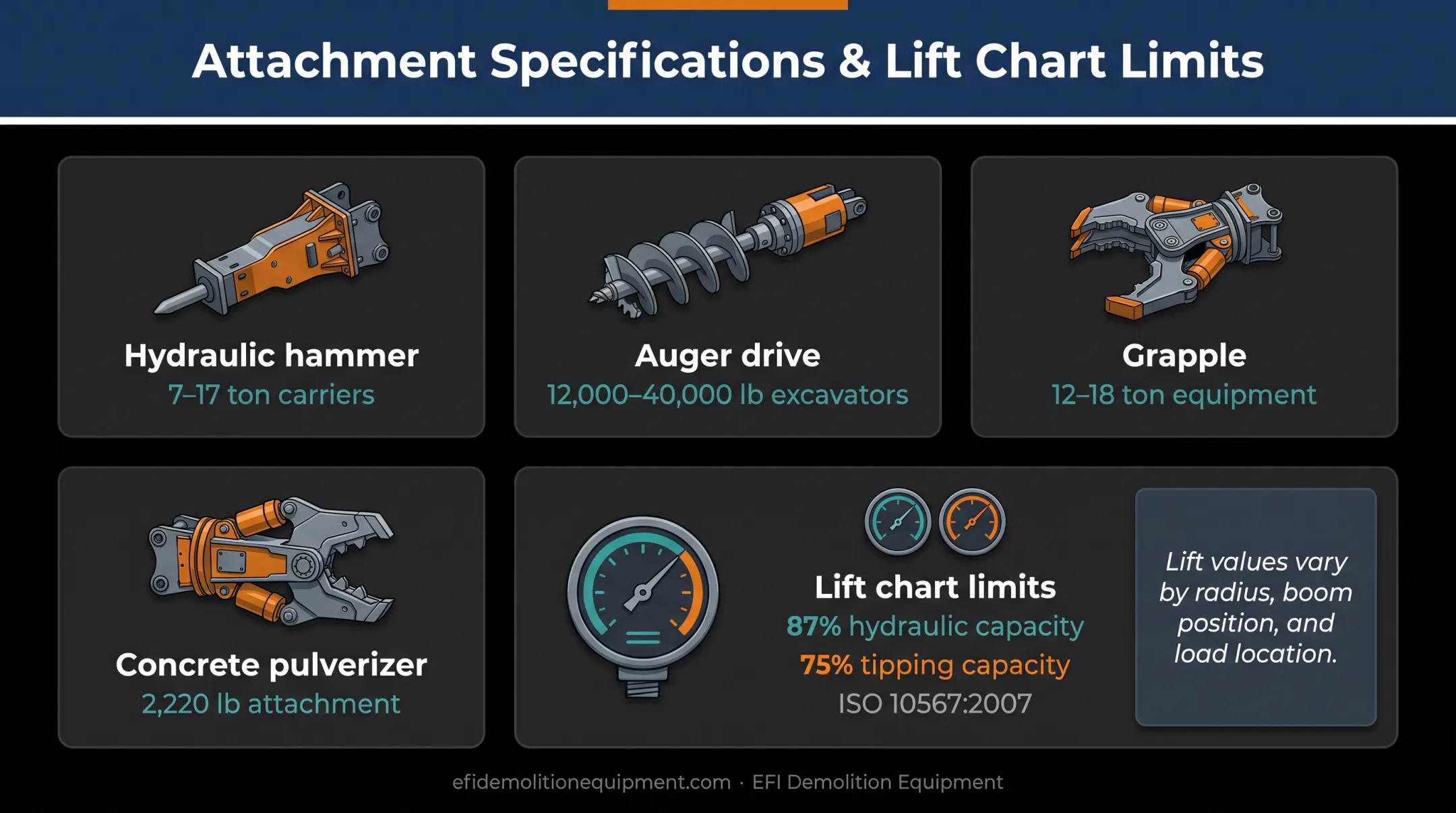

Attachments and Lift Performance Across Size Classes
An excavator's size class tells you almost nothing about what it can safely lift or run. You need to match the attachment's weight, hydraulic flow, and pressure to the carrier.
Real-world examples from attachment spec sheets show how wide this range gets:
- A hydraulic hammer built for 7–17 ton carriers won't run safely on a 3-ton mini.
- An auger drive spec'd for 12,000–40,000 lb excavators needs matching auxiliary flow, not just a compatible coupler.
- A grapple rated for 12–18 ton equipment demands enough hydraulic pressure to open and close under load.
- A concrete pulverizer weighing 2,220 lb requires the carrier to safely handle that weight in the bucket position, not just at rest.
Lift capacity works the same way. Manufacturer lift charts, like the one Caterpillar publishes for its 308 CR mini excavator, rate loads according to ISO 10567:2007. Figures are capped at no more than 87% of hydraulic lifting capacity and 75% of tipping capacity.
Those percentages shift based on lift radius, boom position, and whether the load sits over the front or side. A bigger machine doesn't automatically mean a bigger safe lift.

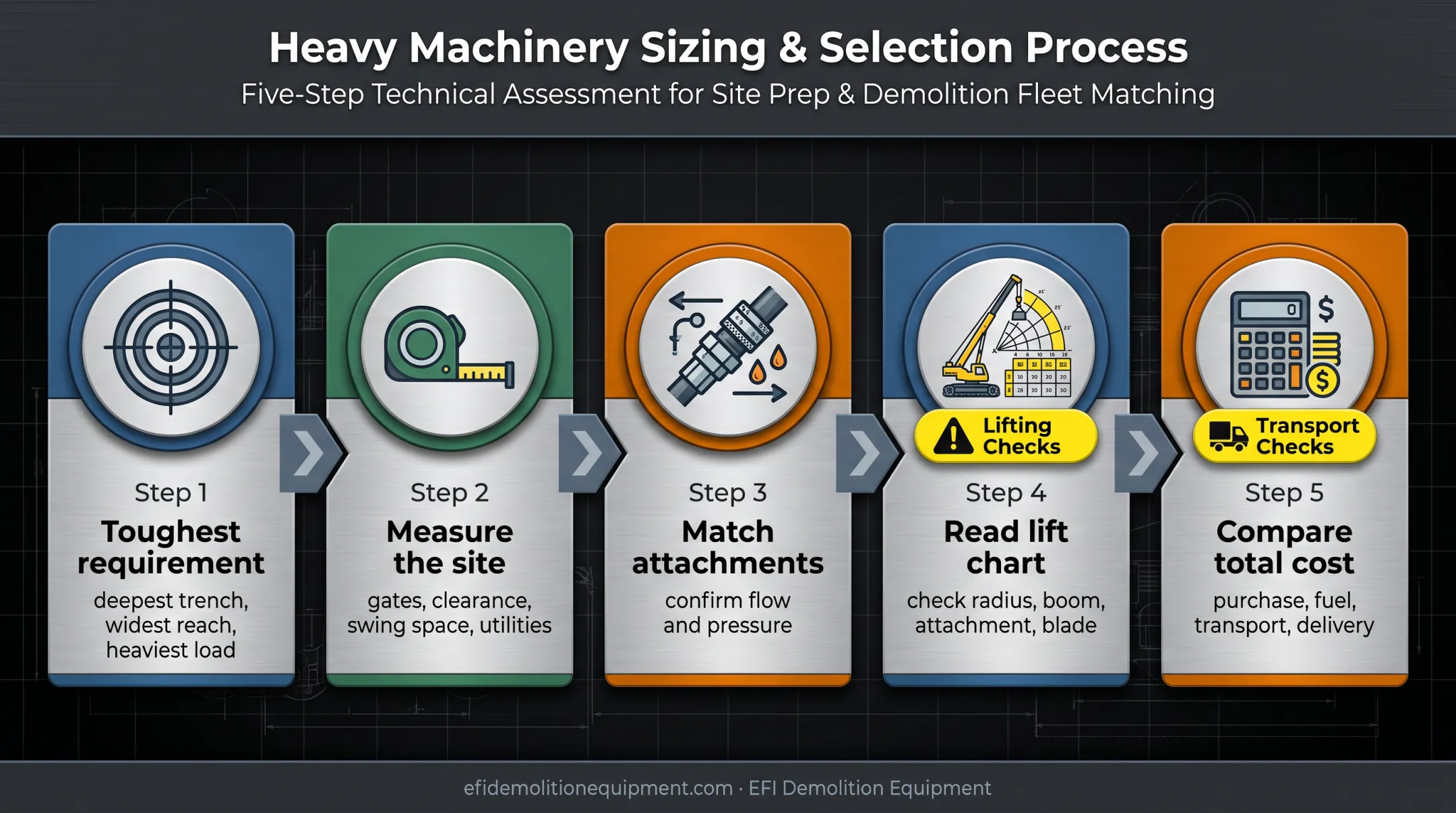

How to Choose the Right Small Excavator Size
Size your excavator to the hardest task on the project, not the average one.
1. Start with your toughest requirement. Identify the deepest trench, widest reach, heaviest material, and the heaviest attachment or object the machine must handle. Sizing for an "average" day leaves you short when the real work shows up.
2. Measure the site before you measure the machine. Walk it and check:
- Gate and entrance width
- Overhead clearance
- Turning and swing space
- Slope, surface type, and proximity to structures
- Underground utility locations
- Whether you need zero, reduced, or conventional tail swing
3. Match the machine to your attachment package. If you're running a breaker, auger, compactor, grapple, shear, or pulverizer, confirm the excavator's hydraulic flow and pressure meet the attachment's spec. Running a tool outside its rated range causes overheating and premature wear.
Fitment matters as much as flow. EFI Demolition Equipment stocks hydraulic hammers for mini and compact carriers through the 12-ton class—with units up to 12,000 ft-lbs of impact energy—plus trenchers, augers, and pulverizers matched to specific carrier weights. When a standard mount doesn't fit, EFI's fabrication shop builds custom mounts and pins, often with same-day turnaround.
4. Read the lift chart, not the ton rating. A stated capacity like 2,000 lb means nothing without the lift radius, attachment weight, blade position, and machine configuration behind it. Two machines in the same weight class can have very different safe lift figures once you factor in the actual chart.
5. Compare total ownership and transport cost. Look at purchase or rental price, fuel and maintenance, trailer payload, tow vehicle capacity, and delivery logistics. Under 49 CFR 393.130, tracked equipment at 10,000 lb or more requires at least four tiedowns, so factor that into your hauling plan even for smaller compact models.
Renting a larger machine occasionally for heavy attachment work often beats buying oversized equipment you'll rarely need at full capacity.
What to Check Before Finalizing Your Choice
Before you sign off on a machine, confirm a few details that spec sheets alone won't cover.
- Verify exact dimensions and weight on the current manufacturer sheet, including the bucket, attachment, fluids, cab or canopy, and counterweight you'll actually run.
- Confirm the full transport plan: trailer payload, tow vehicle rating, tie-down points, loading height, and route restrictions to the jobsite.
- Look past price and horsepower. Check operator visibility, service access, parts availability, attachment support, and how fast a supplier responds when a machine or attachment goes down.
- Require a site-specific review for lifting and demolition. OSHA prohibits workers from standing beneath loads handled by lifting or digging equipment and requires a warning system when the operator can't clearly see the excavation edge. Follow manufacturer load charts and trained-operator procedures on every job, not just the tricky ones.
When you compare suppliers, ask how units are prepped and supported. EFI runs every machine through a 12-point inspection before it ships and offers financing through Currency Finance and American Bank, with delivery across the U.S. and internationally.
Conclusion
Mini and compact excavators cover a lot of ground. The smallest models solve access and surface-impact problems that no larger machine can touch. Bigger compact excavators bring the digging depth, lift capacity, and hydraulic power that heavier attachment work demands.
The right small excavator is the one that safely meets your project's toughest requirement while fitting your site, transport plan, and budget.
If you need help matching an excavator to a breaker, shear, auger, or custom mount, EFI Demolition Equipment can walk through equipment, rental, financing, and delivery options at +1 (315) 440-2762 or Endbar@mail.com.
Frequently Asked Questions
What is the smallest size excavator?
Micro or ultra-compact excavators are the smallest class, with published examples weighing around 2,300–2,700 lb. Exact dimensions vary by manufacturer, so check width, height, and retracted-track measurements before ordering.
What size mini excavator do I need to lift 2,000 lb?
No single excavator size guarantees a 2,000-lb lift. Check the manufacturer's rated lift chart for your specific radius, boom position, attachment weight, and blade position before assuming any machine can handle the load.
What is the best size mini excavator for my needs?
Match the machine to digging depth, site access, lift capacity, attachment hydraulics, ground conditions, and transport limits. For unusual or high-risk jobs, confirm specs with an equipment specialist before you buy or rent.
How much does a small excavator weigh?
Weight varies by class, from around 2,300 lb for micro models to 20,000 lb or more for large compact machines. Always include attachments and transport equipment in your hauling calculations.
What is the difference between a mini excavator and a compact excavator?
The terms are often used interchangeably, though some manufacturers use "compact" for a broader range of smaller machines. Compare actual weight, dimensions, lift chart, and hydraulic specs instead of relying on the label alone.
