Many contractors size a bit by post dimension alone: a 4x4 gets a 6-inch bit, a 6x6 gets an 8-inch bit, done. That shortcut ignores soil conditions, required depth, structural load, frost exposure, and the carrier's actual torque and hydraulic capacity. A bit that performs well in loam can bind, stall, or produce an out-of-round hole in clay, rock, or frozen ground.
This guide covers how to match auger diameter and equipment class to the application, validate that choice against project requirements, and avoid setups that are unsafe or simply wrong for the ground you're drilling.
Key Takeaways
- Auger size is hole diameter, not depth; depth depends on power unit, shaft, extensions, and ground.
- Size for clearance: match the bit to actual post dimensions plus concrete or drainage, not the nominal label.
- Tough ground (rock, roots, frozen soil, clay) needs different teeth or a bigger carrier, not just a wider bit.
- Confirm structural plans, local codes, utility locations, and machine ratings before digging.
What Post Hole Digger Auger Size Represents and What Influences It
Auger Diameter Isn't Always Hole Diameter
Manufacturers list two different numbers: flighting outside diameter and cutting diameter. General Equipment's 4710 Series, for example, is sold by flighting diameter from 6 to 36 inches, with cutting diameter specified separately because the outside teeth project past the flighting itself.
Wear, tooth condition, and soil behavior all affect what diameter actually comes out of the ground. Never assume the nominal bit label equals your finished hole.
Diameter, post dimension, hole depth, extension length, carrier capacity, and torque are separate specifications. Treating them as interchangeable is where most sizing mistakes start.
A 12-inch bit rated for a 40,000-lb excavator tells you nothing about how deep it can go in your soil. A longer extension doesn't mean more usable depth if the drive can't produce enough torque to reach it.
Sizing for Actual Clearance, Not Nominal Labels
A nominal 4x4 post isn't 4 inches square. Dressed, dry Southern Pine 4x4 lumber measures 3-1/2 by 3-1/2 inches, and a 6x6 measures 5-1/2 by 5-1/2 inches, according to the Southern Forest Products Association.
Size the hole from that measured dimension, plus whatever concrete, drainage gravel, or reinforcement the design calls for, not the number stamped on the lumber.
Application changes the math:
- Fence posts and sign posts need clearance for backfill or a concrete collar.
- Deck and structural footings need diameter and depth calculated from load and soil bearing, not post width.
- Utility poles and agricultural structures carry engineered embedment specs from the pole manufacturer or a structural drawing.
- Tree planting needs a hole sized to the root ball, not the trunk.
Load, post spacing, frost exposure, and wind all factor into required diameter and depth on structural work. Check the applicable code section or manufacturer's design table for the job in front of you instead of applying a generic rule.
Factors That Influence Field Performance
Ground conditions change everything about how a given bit performs:
- Sand and loam cut easily but can slough into the hole, reducing effective diameter.
- Clay grabs flighting and increases torque reaction, especially when wet.
- Rock, roots, and frozen ground demand carbide or rock-specific teeth. A standard earth bit will wear fast or stall outright.
- Compacted fill and gravel chew up standard teeth quickly and slow spoil removal.

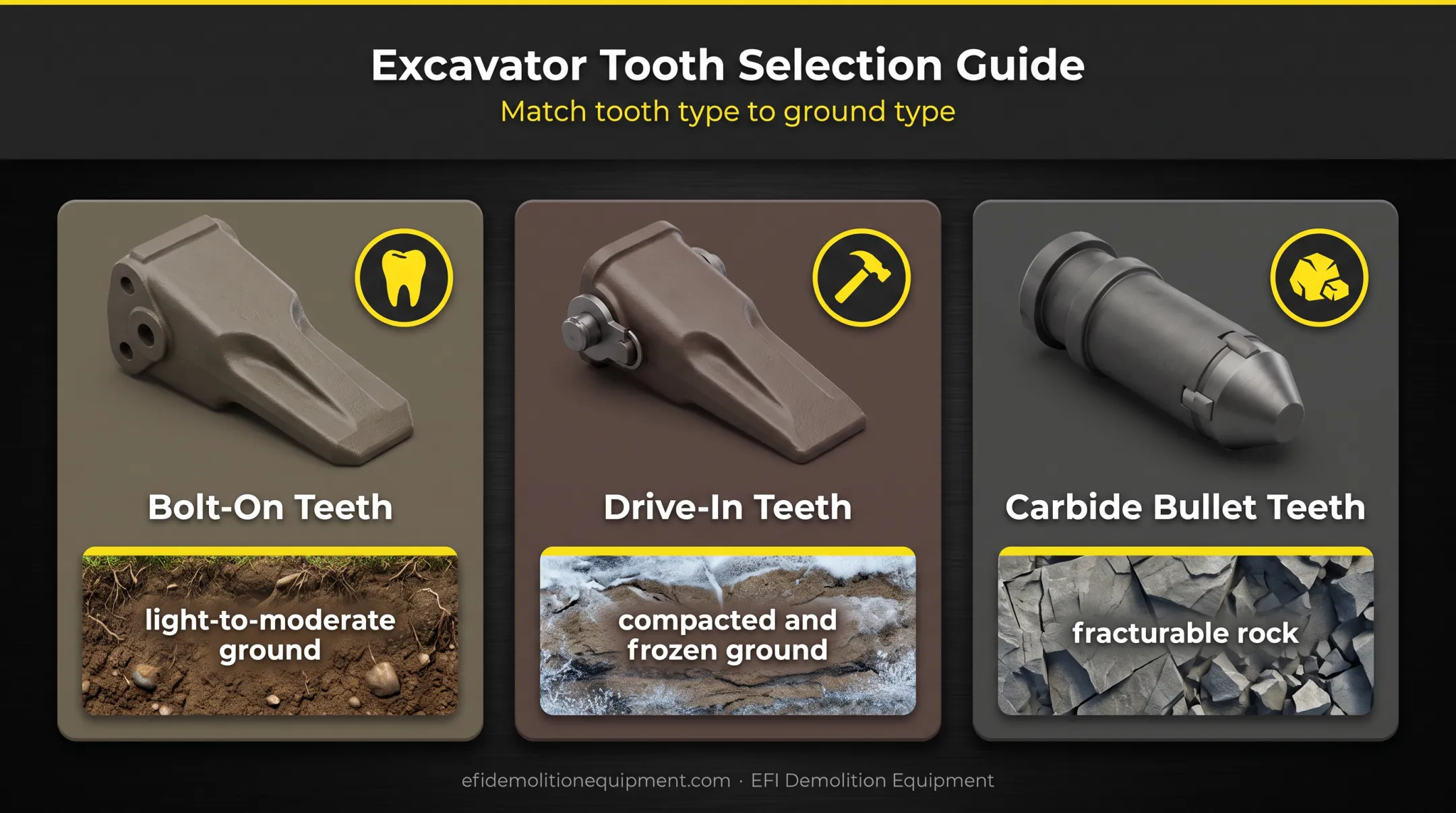

Danuser's product line illustrates the split: fabricated bolt-on teeth for light-to-moderate ground, cast drive-in teeth for compacted soil and frozen ground, and carbide bullet-style teeth built for fracturable rock. Matching tooth type to ground type matters more than simply grabbing a bigger bit.
Drilling volume and access matter too. A handheld one-person unit works fine for a handful of fence posts in open ground.
High volume, tight access, overhead lines, slope, or proximity to structures push the decision toward a heavier carrier:
- Two-person handheld units
- Tractor PTO attachments
- Skid-steer attachments
- Excavator-mounted augers
Each option brings its own torque, flow, and mounting requirements.
Range of Post Hole Digger Auger Sizes and Depths
Auger sizing depends on application, post dimensions, design requirements, soil, and machine limits. No single chart fits every job. The table below reflects published equipment offerings and typical jobsite guidance. Verify against your project's actual specification before ordering a bit.
Nominal Diameter by Application
| Application | Typical Bit Diameter | Key Consideration |
|---|---|---|
| Signs & small landscape posts | 1.5–6 in | Size to the post, not soil volume |
| Residential fence posts | 6–12 in | Check concrete mix instructions for hole-to-post ratio |
| Larger/commercial fence posts | 12–36 in | Confirm embedment depth against the fence spec |
| Deck & light structural footings | 18–24 in, load-dependent | Based on tributary load and soil bearing, not post width |
| Tree & shrub planting | 12–30 in, often stepped | Match root ball diameter, not trunk diameter |
| Utility poles & foundation work | 10–48+ in | Engineered embedment and carrier torque rating |
A bit that's too narrow leaves inadequate clearance for concrete or drainage material and can force the post out of alignment. A bit that's unnecessarily wide removes more soil than needed, increases concrete or backfill volume, and can exceed what your carrier is rated to swing.
Depth, Extensions, and Boundary Limits

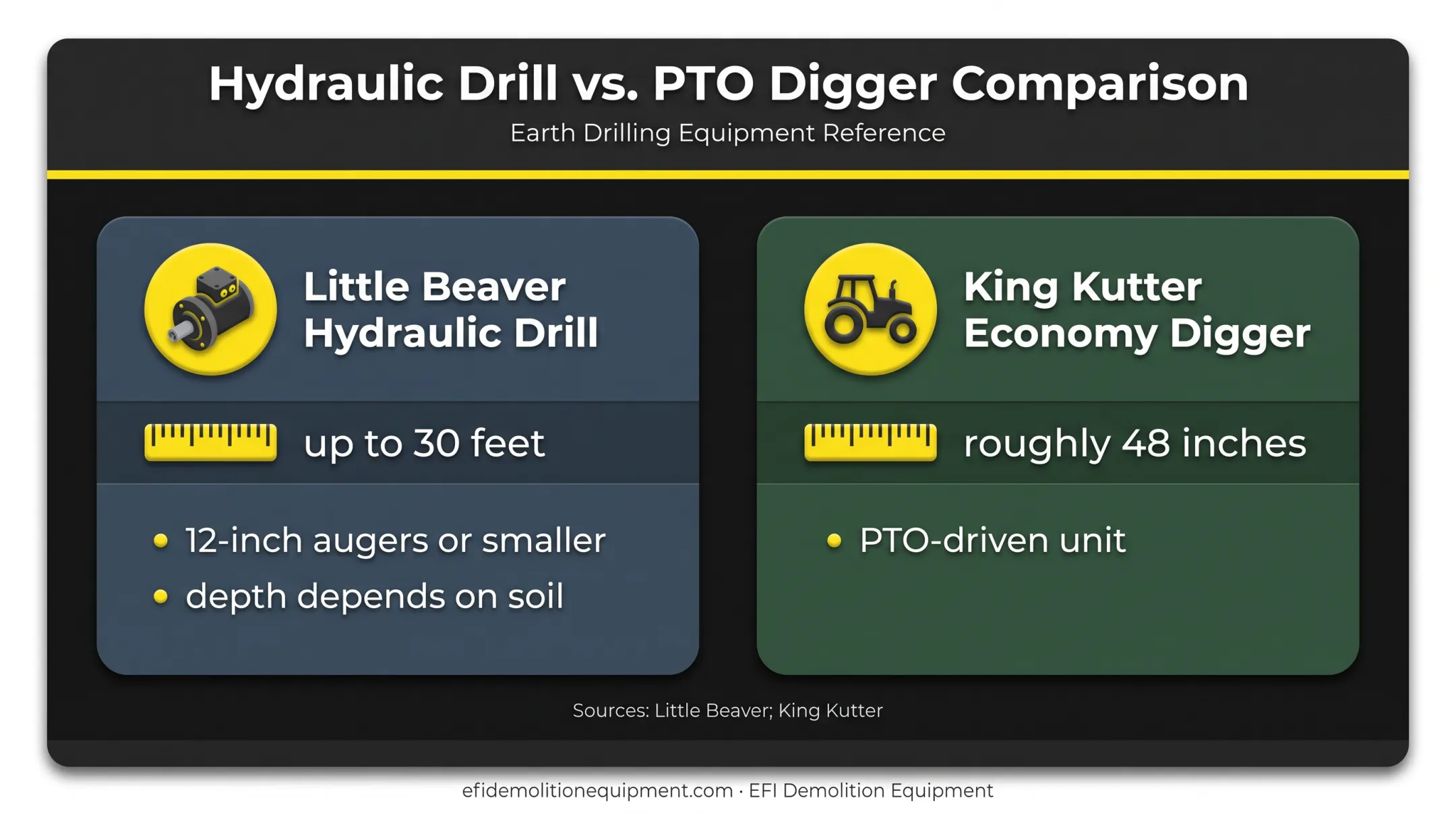

Depth is a function of the power unit, auger shaft, extension system, ground conditions, and manufacturer rating, never bit diameter alone. Little Beaver rates its hydraulic drills for depths up to 30 feet with augers 12 inches or smaller, depending on soil. A PTO-driven unit like King Kutter's economy digger is rated to roughly 48 inches.
Footing and post depth also depend on frost exposure. The International Residential Code requires exterior footings at least 12 inches below undisturbed ground, subject to the frost line in the locally adopted code table. Correct depth is a local determination, not a nationwide constant.
Root-ball depth for tree planting and pole embedment for utility work follow their own specifications.
Extensions add reach, but they don't add power. Drilling deeper with an extension can reduce visibility into the hole, slow spoil removal, shift machine balance, and increase operator exposure if the bit binds. Confirm the carrier and extension combination is rated for the setup before running it.
Safe Operating Margin
Running a unit continuously at its maximum diameter, depth, or torque rating, especially in hard or obstructed ground, invites failure. Watch for these warning signs:
- Repeated stalls or the engine bogging down
- Excessive vibration through the mount or handles
- Uncontrolled rotation or torque kickback
- Abnormal heat at the gearbox or hydraulic drive
- Chipped, dull, or missing teeth
- A hole that's out-of-round, angled, or rough-bottomed
These signs mean it's time to reassess the bit, the tooth type, or the carrier, not push harder.
Key Technical Properties of Auger Selection and How to Validate It
Selecting the right auger is a dimensional decision and an equipment-matching decision at the same time. Diameter, depth, torque, hydraulic flow or engine output, mounting, and tooling all have to line up before the first hole goes in.
Diameter, Clearance, and Hole Quality
Bit diameter sets the nominal hole width, but tooth condition, flighting design, and soil behavior determine what actually comes out of the ground. Sidewall sloughing in loose soil, repeated passes to clear spoil, and worn teeth can all widen or roughen a hole beyond spec.
When specified geometry matters—for a footing that has to pass inspection, for example—consider a pilot hole followed by the finish bit, a casing to hold the sidewalls, or hand finishing at the bottom. A single pass with a worn bit in unstable soil rarely produces an inspection-ready hole.
Carrier and Attachment Compatibility
The auger drive and mount have to match the host machine's weight class, hydraulic flow, pressure, lift capacity, and operating radius, not just the bit diameter you want.
Real-world equipment specs show how much this varies. EFI's inventory includes the 2024 LYALS LY8000N excavator auger, built for roughly 12,000- to 40,000-pound excavators with a 3-inch drive shaft and 12- and 16-inch augers included. It suits foundation holes, soil boring, and pile installation.
At the other end of the spectrum, the 2018 Auger Torque XHT166 produces 166,000 ft-lb of torque and handles screw piles up to 8 feet in diameter, but it requires excavators weighing 35,000 pounds or more. Bolting either drive to an undersized carrier creates a compatibility failure, regardless of bit diameter.
Commercial contractors sorting out whether an attachment actually fits their carrier, or who need a custom-fabricated mount or pin to make it fit, can talk to EFI Demolition Equipment before committing to a purchase or rental.
Stability, Torque, and Variability
Torque reaction increases with diameter, depth, obstructions, moisture, and soil density. A more powerful drive reduces stalling, but it doesn't eliminate the need for safe bracing, clear bystander zones, and a controlled stop procedure if the bit binds.
Production runs introduce their own variability:
- Repeatability drops as teeth wear, widening tolerances hole to hole
- Drift from the intended location increases in rocky or root-filled ground
- Spoil buildup around the hole slows cycle time and clean-out
- Damaged teeth reduce cutting efficiency well before they fail completely
Specification and Field Validation

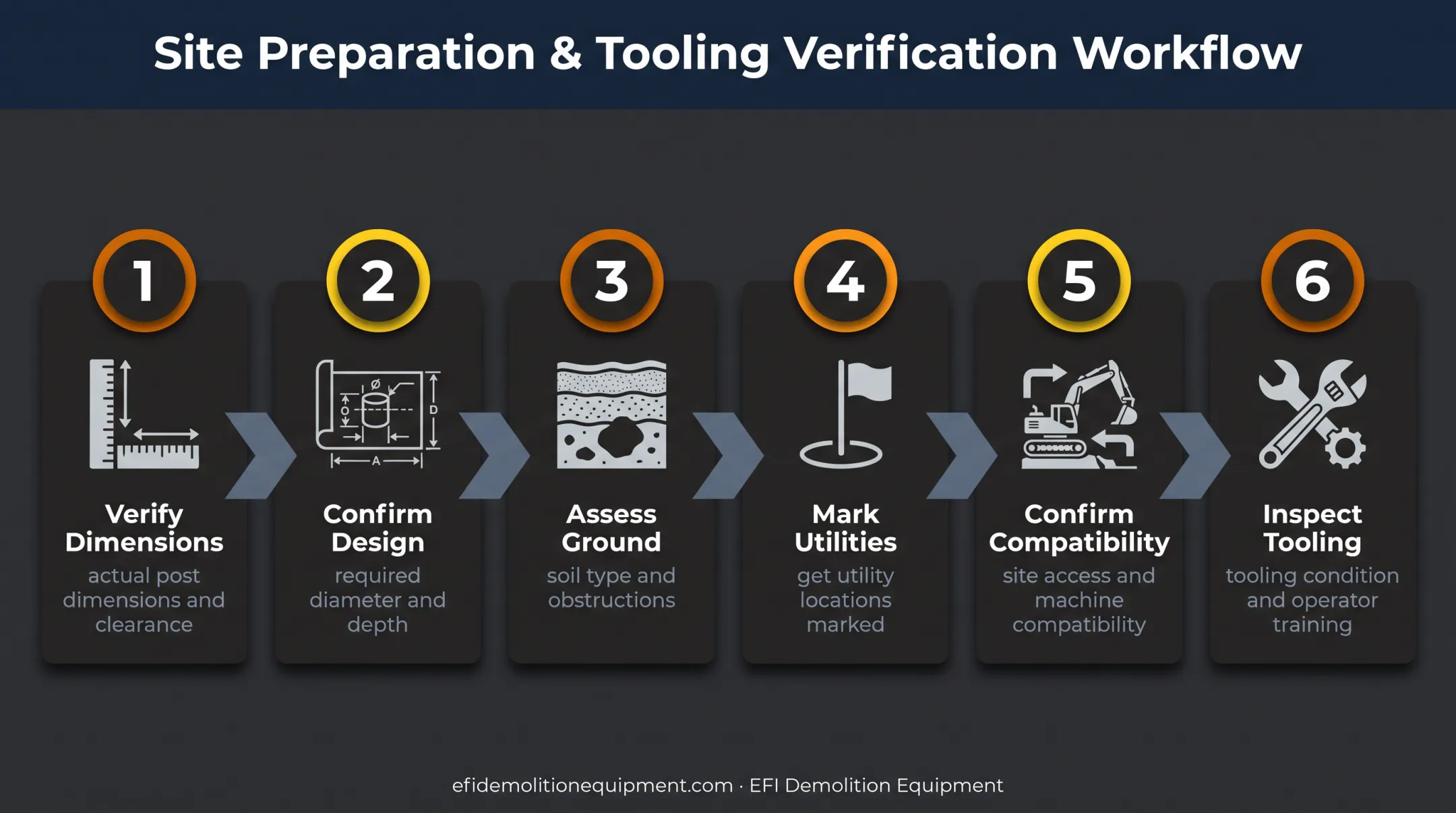

Compare manufacturer datasheets, attachment manuals, and project drawings, not a rental counter listing or a nominal bit label, before finalizing a diameter. A pre-drilling checklist keeps the process honest:
- Verify the post's actual dimensions and the specified clearance
- Confirm required diameter and depth from the design or code
- Assess soil type and check for obstructions
- Get utility locations marked
- Confirm site access and machine compatibility
- Inspect tooling condition and confirm operator training
Drill one hole first. Check its diameter, depth, alignment, sidewall condition, and bottom cleanliness before repeating the setup across the rest of the site.
Implications of the Wrong Auger Size and Common Misinterpretations
Getting the diameter wrong costs more than a redo.
Undersized augers leave inadequate clearance for concrete and reduce alignment tolerance. They increase binding as the bit works harder than it should and often mean pulling the post and starting over.
Oversized augers remove more soil than the design needs, increase concrete or backfill volume, and weaken the surrounding ground. They also slow production and can exceed the carrier's rated diameter or lift capacity for that attachment.
Operating beyond rated diameter, depth, torque, or hydraulic limits isn't just inefficient. It risks equipment damage, uncontrolled bit or boom movement, and direct exposure for the operator standing near a binding auger.
Common Mistakes Worth Avoiding
- Treating a fence-post rule of thumb as an engineering calculation for a structural footing
- Confusing bit diameter with achievable depth
- Assuming a bigger bit solves rocky or frozen ground (it usually just stalls harder)
- Sizing off the nominal post label instead of its actual measured dimension
- Skipping utility locates or local code checks before the first hole
OSHA requires identifying the estimated location of underground installations and contacting the utility owners before excavation begins. That step is easy to skip when the job feels routine, and expensive to skip when it isn't.
A Practical Decision Sequence
- Confirm the design or specification for the post, footing, or pole
- Calculate required clearance from actual, measured dimensions
- Assess ground conditions and obstructions
- Select the carrier and tooling rated for that combination
- Verify manufacturer and code ratings against the plan
- Drill and inspect the first hole before running full production
Conclusion
Auger diameter is a governing specification. It connects directly to post clearance, hole quality, structural requirements, soil conditions, and the carrier turning the bit. Sizing off the post alone, or off the biggest bit available, skips half the equation.
Before the first hole goes in, confirm:
- Project and structural requirements
- Machine and attachment ratings
- Ground conditions and dig depth
- Utility locations and operator safety
Test one hole, match it to spec, then run the rest of the site.
Contractors sorting out attachment compatibility, custom mounts or pins, or a job-ready auger setup can reach out to EFI Demolition Equipment for support built around the carrier they're actually running.
Frequently Asked Questions
What size post hole auger do I need?
It depends on the post's actual dimensions, required clearance, foundation design, soil conditions, and local code, not a single universal diameter. Check the project specification before choosing a bit.
What size auger should I use for a 4x4 or 6x6 post?
Nominal labels don't match actual size: a dressed 4x4 is 3-1/2 inches square; a 6x6 is 5-1/2 inches. Size the hole for concrete, drainage, and alignment per the design.
How deep can a post hole auger dig?
Depth depends on the drive, shaft, extensions, host machine, and soil, not the bit diameter. Frost depth or footing requirements from local code often set the minimum depth for structural work.
Is a larger auger always better?
No. Oversizing increases spoil, concrete volume, and ground disturbance, and can overload your carrier. Use the smallest bit that meets clearance and design requirements.
What auger should I use in rocky or clay soil?
Rocky or clay ground often needs carbide or rock teeth, more torque, or a machine-mounted unit. Forcing a standard earth bit through obstructions usually stalls the drive or breaks teeth.
Should I use a one-person, two-person, or machine-mounted post hole digger?
Choose based on bit diameter, soil resistance, volume, depth, and access. Handheld units suit light work; machine-mounted drives handle larger diameters and harder ground when carrier specs match.
